Rewinding Machine for Sale

The rewinding machine for sale is a kind of special equipment used for paper, film, etc. Its purpose is to rewind the paper rolls produced by the paper machine in turn, and the paper will be made into finished paper after the rewinding. At present, it has become a development trend in the papermaking machinery industry to replace DC drives with AC drives in rewinding machines.

Rewinding Machine
Rewinding Machine

Request A Quote

Rewinding Machine for Sale Parameter:

Trimmed Width 1880mm-3800mm
Grammage rang 13~45GSM
Design Speed 180-1200m/min
Working Speed 150~1000m/min
Production Capacity 5-60TPD



Paper Rewinding Machine for Sale

The paper roll made by the paper rewinder machine is relatively soft and may be damaged or broken inside, the edges on both sides are not neat, and the width of the paper can not be directly used in paper processing or printing machines. Most paper types must be paper Rewinding machine trimming, slitting, splicing, and rewinding on the paper roll core to form a finished paper roll with a certain specification and certain tightness requirements can be delivered.

The rewinding process mainly completes three tasks: 1. Cut off the burrs of the base paper; 2. Cut the entire base paper into several widths that meet the user’s specifications; 3. Control the roll diameter of the finished paper roll to make it meet the factory specifications.

Rewinding Machine for Sale
Rewinding Machine for Sale

Paper Rewinder Machine
Paper Rewinder Machine

Request A Quote

What are the Characteristics of Slitter Rewinding Machine for Sale:

  1. The rewinding machine for sale adopts PC or manual control, with reliable performance and high degree of automation. It can automatically identify wrong commands to avoid accidents caused by wrong operations;
  2. The pre-programmed process can be locked so that the operator cannot change it without authorization to ensure the quality of the pressed product;
  3. Equipped with processing centerless, solid, and rolled paper tube toilet paper, the switch between products can be completed instantly.
  4. Slitter rewinder machine has the functions of timing mold opening, automatic deflation, and automatic pressure compensation;
  5. Automatic trimming, glue spraying, sealing, and shaft extraction are completed instantly so that the roll paper is transferred to the band saw for cutting and packaging without paper loss.
  6. Three operation modes of manual, automatic, and electric are available;
  7. The electric heating press adopts digital display (pointer type) to control the temperature, control and display the temperature of the heating plate.

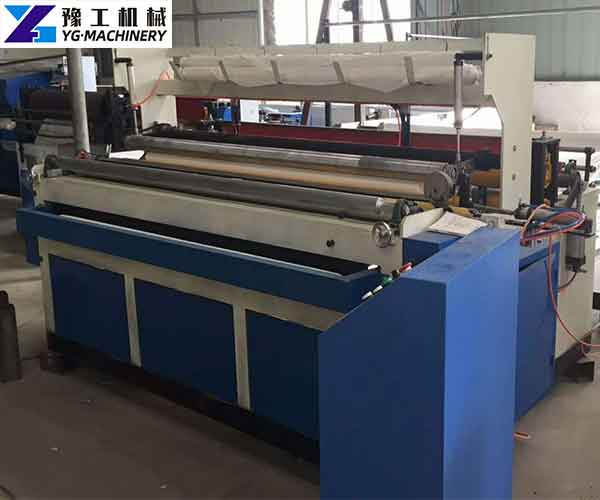

Slitter Rewinder Machine
Slitter Rewinder Machine

Request A Quote

How to Maintain a Rewinding Machine?

  1. The slitter rewinder machine regularly checks the screws of each part of the packaging machine to avoid loosening;
  2. For paper rewinding machine, pay attention to the waterproof, moisture-proof, anti-corrosion and rat-proof of the electrical parts. The inside of the electric control box and the wiring terminals must be kept clean to prevent electrical failure;
  3. When the rewinding machine is stopped, the two heat-sealing rollers should be in the open position to prevent the packaging materials from being scalded;
  4. Lubricate the gears of the rewinding machine, the oil hole of the bearing with a seat and all moving parts regularly. When adding lubricating oil, please be careful not to drop the oil on the transmission belt to prevent slipping and loss of rotation or belt aging damage;
  5. The newly installed slitter rewinder must be inspected, tightened, and oiled for maintenance of the transmission and moving parts within one week of use; thereafter, it must be inspected and maintained regularly every month.
Fabric Rewinder
Fabric Rewinder

Paper Slitter Rewinder Machine
Paper Slitter Rewinder Machine

Request A Quote

Other Products

YGMachinery can not only provide you with competitive rewinding machine prices, but also provide you with fully automatic tissue paper making machines, wet wipe machines, glove making machines, meltblown machines, mask making machines, industrial oxygen generators, and so on. If you want to know more detailed product information, you can click on the message box below to get it.
