A Backhoe Loader is a two-in-one machine. It has a loader at the front and a backhoe at the rear. This makes it useful for digging, lifting, loading, and light demolition. The machine is easy to move between jobs. It works well on urban sites and farms.

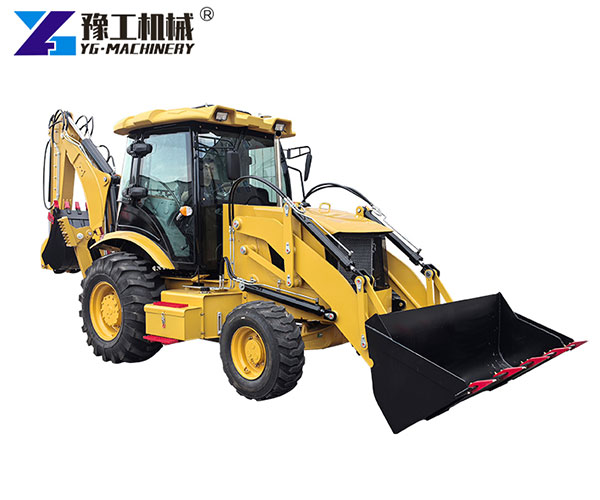

Key Components of Backhoe Loader for Sale

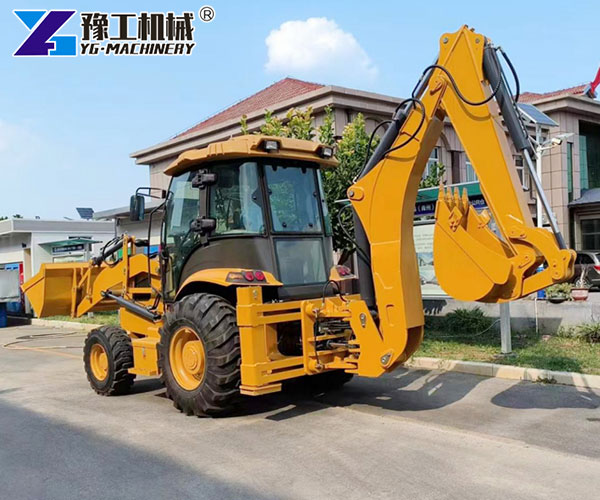

A construction backhoe for sale usually includes these main parts:
- Engine and fuel system (diesel)
- Front loader bucket and arms
- Rear backhoe boom, dipper, and bucket
- Hydraulic pump and valves
- Operator cab with controls and seat
- Stabilizer legs for digging
- Chassis, axles, and tires

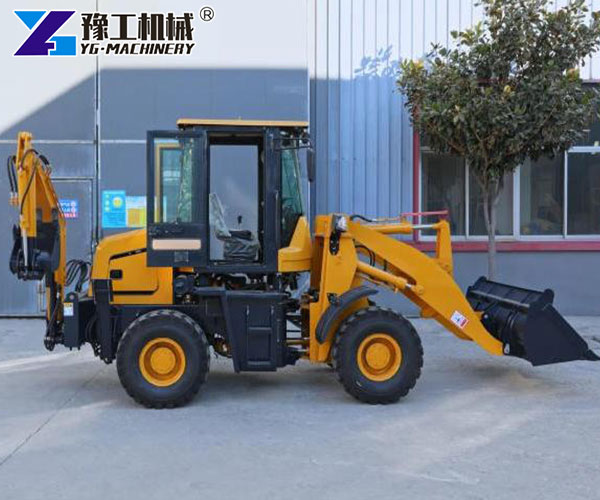

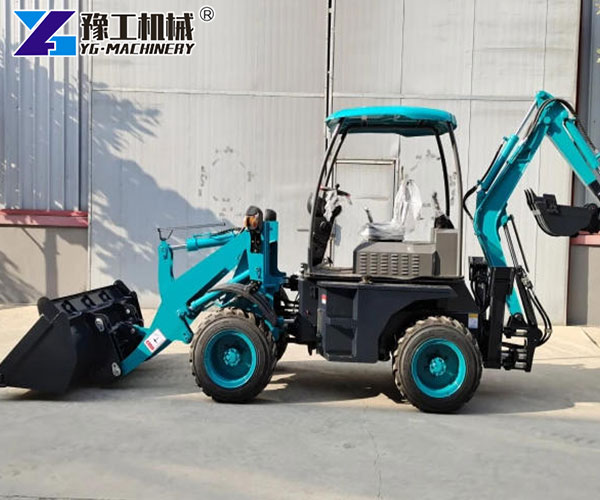

Compact Mini Backhoe Loader
A mini backhoe loader is smaller and lighter. It fits tight sites and narrow roads. Typical benefits:
- Easier transport on small trailers
- Lower ground pressure for lawns and soft ground
- Good for landscaping, small utilities, and home projects
Mini backhoe loaders still deliver good digging depth and can use many same attachments as larger models.

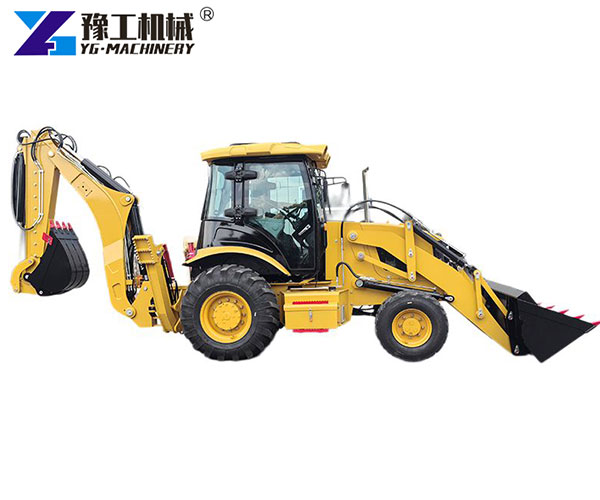

Main Features of Hydraulic Backhoe Machine
A hydraulic backhoe machine uses a hydraulic system to move all arms and buckets. Important features:
- Smooth and precise control
- High breakout force for tough soil
- Quick cycle time for faster work
- Lower operator fatigue due to proportional controls
Bulleted Features:
- Hydraulic stabilizers for steady digging
- Load-sensing pump for fuel efficiency
- Pilot-controlled joystick for easy operation

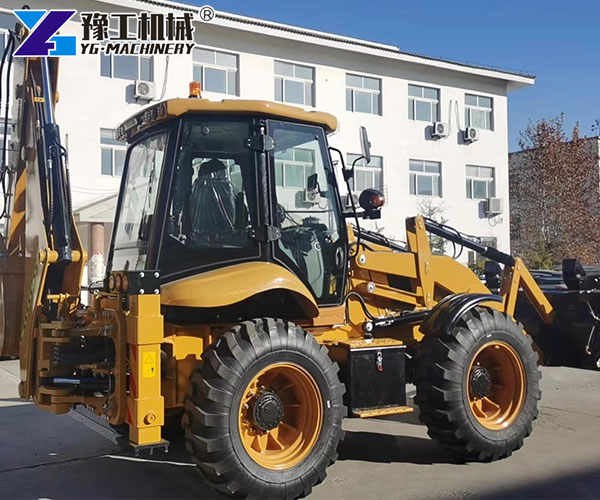

Product Characteristics of Loader Excavator
The multifunctional nature of a backhoe loader means it can handle many tasks:
- Dig trenches and foundations
- Load trucks with the front bucket
- Lift pallets with pallet forks
- Break small concrete with a hydraulic breaker attachment
This flexibility reduces the need for extra machines on site.

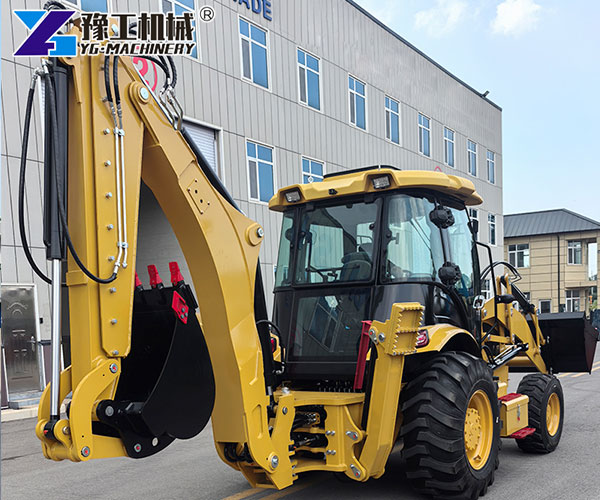

Diesel Backhoe Loader | Typical Technical Parameters
A diesel backhoe loader version often has these specs (example range):
| YG30-25C Backhoe Loader | |
| Operating Weight | 7,500 kg |
| L*W*H | 7,600*2,260*2,900 mm |
| Wheel base | 2,250 mm |
| Wheel Tread | 1,700 mm |
| Min. Ground Clearance | 300 mm |
| Hydraulic System Pressure | 22 Mpa |
| Hydraulic System Flow | 20 L/min |
| Max.Traction | 39kN |
| Loader Performance | |
| Rated Load | 2,500kg |
| Loader Bucket Capacity | 1.3 m³ |
| Loader Bucket Width | 2,100 mm |
| Loader Bucket Dumping Height | 2,742 mm |
| Loader Bucket Dumping Distance | 1,062 mm |
| Loader Bucket Digging Depth | 52 mm |
| Loader Bucket Breakout Force | 38 kN |
| Loader Bucket Lifting Time | 5.4S |
| Loader Bucket Lowering Time | 3.1S |
| Loader Bucket Discharge Time | 2.0S |
| Backhoe Performance | |
| Backhoe Bucket Capacity | 0.3 m³ |
| Backhoe Bucket Width | 600 mm |
| Max.Digging Depth | 4,082 mm |
| Backhoe Digging Force | 46.5 kN |
| Backhoe Boom Digging Force | 31 KN |
| Backhoe Bucket Swing Angle | 180° |
| Engine | |
| Brand &Model | YUCHAI |
| Type | In Line, Direct injection,4-Stroke, Water-cooled, Diesel |
| Rated Power | 78 kw(106 hp),Turbocharger |
| Steering System | |
| Steering Angle | ±36° |
| Min.Turning Radius | 3,660 mm |
| System Pressure | 12 Mpa |
| Axle | |
| Main Transmission Type | Circular Arc Bevel Gear, Single Stage |
| Wheel Side Reduction Type | Single Stage Planetary Type |
| Torque Converter | |
| Type | Single-stage, Single-phase Three Element |
| Cooling Type | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Gears | F2+R2 |
| Max.Speed | 25 km/h |
| Tire | |
| Model | 16/17-20 |
| Tire Pressure | F:0.22 Mpa,R:0.20 Mpa |
| Brake System | |
| Service Brake | Air Over Oil Caliper Brake |
| External Type | |
| Self-adjustment | |
| Self-balancing | |
| Emergency Brake | Flexible Shaft Controlled Disc Brake |
YG offers multiple configurations to match job needs.
Product Use Advantages
- Versatility: One machine does many jobs, saving cost.
- Mobility: Move between sites quickly on the road.
- Efficiency: Powerful hydraulics give a fast cycle time.
- Low Operating Cost: Diesel engine with optimized fuel use.
- Easy Maintenance: Simple service points and commonly available parts.
Application Fields
Backhoe Loaders are used in:
- Urban construction and road repair
- Small excavations and landscaping
- Utility trenching and pipe laying
- Farm work and material handling
- Rental fleets and municipal maintenance
Common Questions (FAQs)
- How deep can the backhoe dig?
Typical digging depth is 3.5–4.5 meters, depending on the model. - Can it carry pallet forks?
Yes. The front loader can fit pallet forks for lifting pallets and materials. - Is operator training needed?
Basic operator training is recommended for safety and longer machine life. - What fuel does it use?
Most models use diesel. YG offers fuel-efficient engines that meet local emission rules. - Can it work in narrow sites?
Mini backhoe loaders are designed for tight spaces and narrow access.
