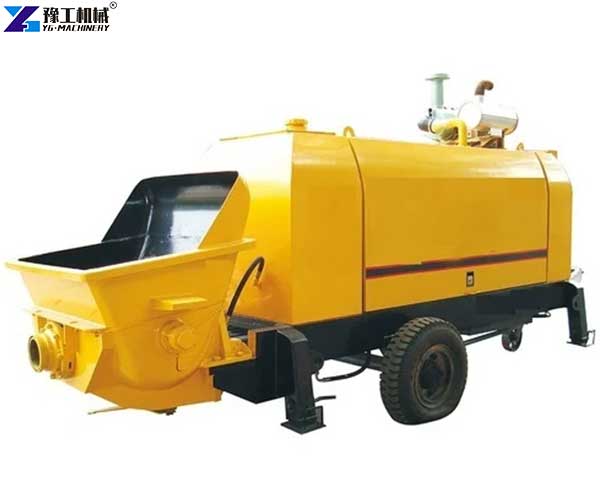

Mini concrete pump for sale

Mini Concrete Pump for Sale Parameter

Model	YG-20	YG-30	YG-40	YG-50
Motor power	22KW	37KW	45KW	55kw
Maximum outlet pressure		26mpa	28mpa	28mpa
Maximum theoretical throughput		16-18m³/h	20-22m³/h	35m³/h
The maximum particle size of aggregate		≤20mm	≤30mm	≤40mm
Vertical conveying distance	40m	80m	120m	150m
Horizontal conveying distance	80m	140m	2600m	300m
Diameter of conveying pipe	80mm	φ80 (100) mm	φ100 (80) mm	Φ125/100mm
Whole machine weight	1600kg	2200kg	2400kg	2500kg
Dimensions	3400x1200x1600mm	3600x1500x1600mm	4000x1500x1550mm	4200*1700*1750mm

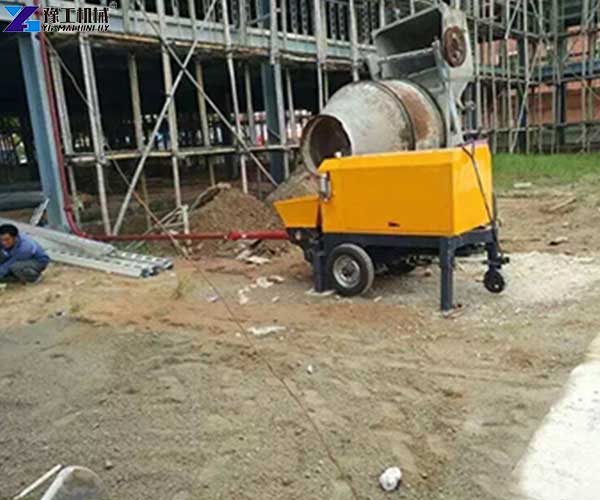

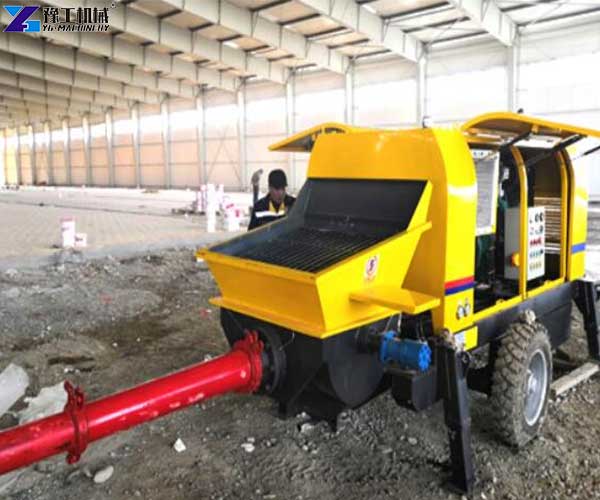

Application Scenarios of Shotcrete Pump for Sale

Mini concrete pump for sale performs well in a variety of construction scenarios.

1. When building a house in the countryside, it can easily deliver concrete to the roof of the second floor, and it can also move flexibly in a narrow courtyard.
2. In municipal road maintenance, it can accurately deliver concrete to the curb casting point without affecting traffic.
3. In the construction of small tunnels and basements, the equipment can deliver concrete to the face through narrow passages.
4. It is also very practical in the construction of rural villas and the pouring of factory floors. Shotcrete pump for sale is often used in injection construction such as mine tunnel support and slope reinforcement, and is suitable for a variety of complex working conditions.

Working Principle of Mini Concrete Pump Machine

The mini concrete pump for sale drives the piston to reciprocate through the hydraulic system, and uses pressure to continuously transport concrete along the pipeline. ‌ Its core working principle can be divided into three basic stages: suction, compression, and push, and the circulation operation is achieved through the switching of the distribution valve.

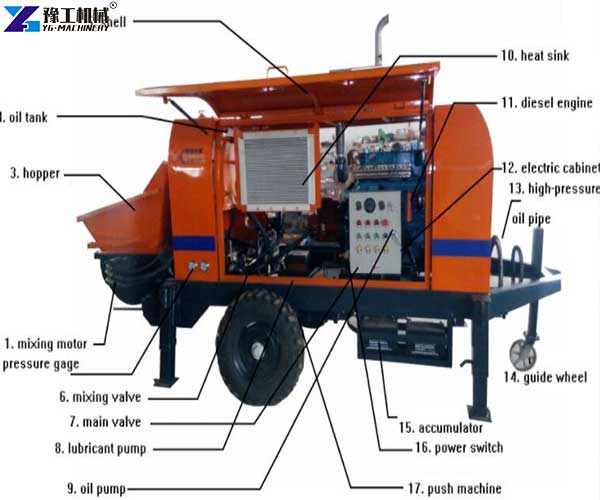

Hydraulic Concrete Pump Main Components and Functions

1. Hydraulic system: as the mini concrete pump for sale’s core power source, it controls the movement cycle and pressure output of the piston. ‌ ‌
2. Piston and pump cylinder: form a closed cavity, and the piston generates negative pressure to suck concrete when retreating, and pressurizes and pushes when advancing. ‌ ‌
3. Distribution valve: switch the flow direction of concrete to ensure continuous delivery.

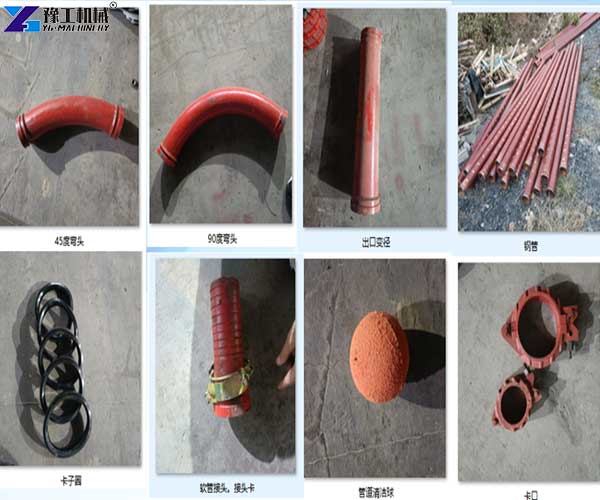

4. Hopper and delivery pipe: store concrete and establish a delivery channel.

5 Features of Mini Concrete Pump

1. High-efficiency and strong delivery capacity: mini concrete pump for sale can continuously and stably deliver a large amount of concrete, greatly improving construction efficiency. At the same time, it reduces pouring interruptions and is suitable for large-scale rapid pouring scenarios. ​
2. Wide range of applications: excellent horizontal and vertical transportation performance, can meet the transportation needs of different heights and distances. It can reach complex construction sites and is less restricted by the site. ​
3. Convenient and flexible operation: equipped with an advanced control system, simple operation. The conveying pipeline can be flexibly extended and rotated to achieve precise material distribution and reduce the waste of secondary concrete handling. ​
4. Good energy saving and environmental protection: using advanced power and hydraulic technology, low energy consumption, high energy efficiency, low operating noise, in line with environmental protection construction requirements. ​
5. Convenient maintenance: the key components are reasonably designed for daily inspection and maintenance. It can extend the life of the equipment, reduce the failure rate, and maintenance costs.

Hot-Selling Shotcrete Pump Models: YG-30/40/50/60

YG produces mini concrete pump for sale in models 10/20/30/40/50/60. Among them, the hot-selling models are mainly the 30/40/50 model:

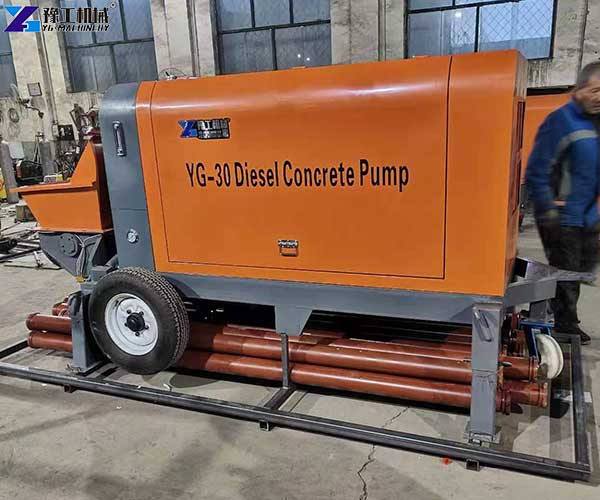

1. YG-30 model mini concrete pump for sale’s hopper volume is 0.3 cubic meters. The diameter of the conveying pipe is 80, the maximum aggregate particle size is within 3 cm, the conveying capacity is 15m²/h, the fine stone conveying height is 20m, and the horizontal conveying distance is 60m, which is suitable for rural house construction.
2. The hopper volume of the YG-40 type is 0.4 cubic meters, the main machine weight is 2300kg, the conveying capacity is 21m³ per hour, and the 13 stone conveying height is 40 meters. This model can meet the construction of medium-sized factories.

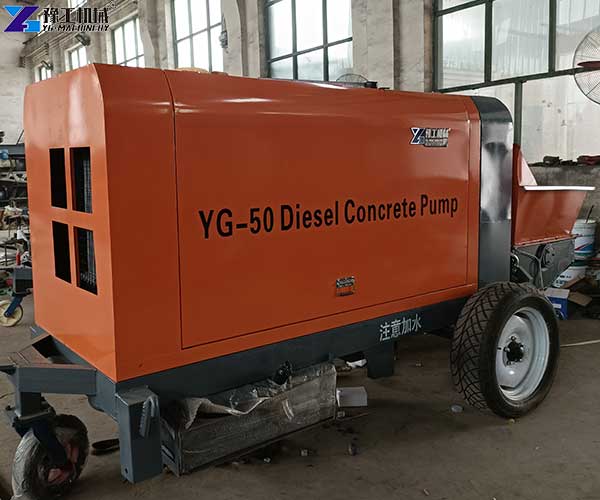

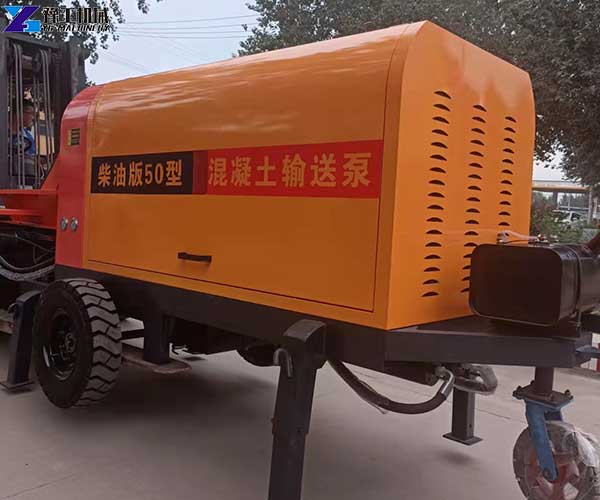

3. The hopper volume of the YG-50 electric pump is 0.4 cubic meters, and the conveying pipe diameter of fine stone is (80) 13 (100) 24 (125). This model of concrete conveying pump is suitable for the needs of medium-sized construction sites.
4. The maximum outlet pressure of the electric YG-60 is 30MPa, the discharge port is 180mm, and it is equipped with a 200L hydraulic oil tank, which can cope with small bridge construction.

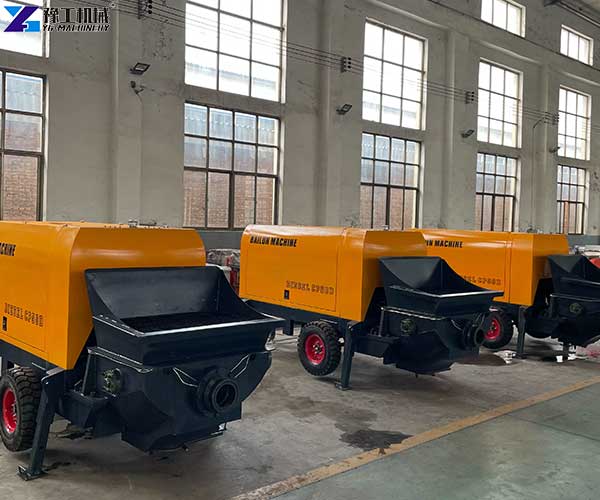

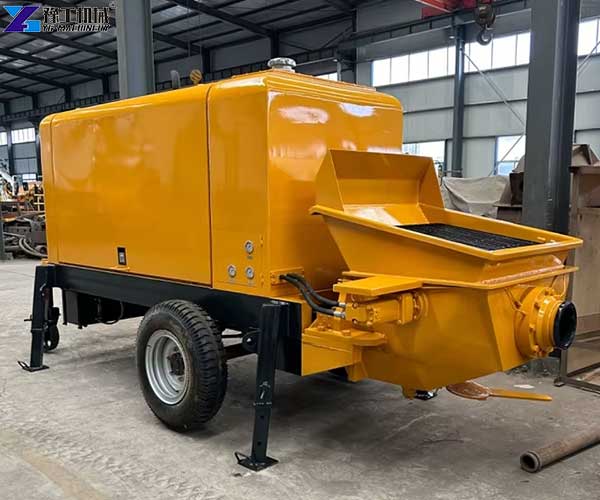

Mini Concrete Pump Machine Solution from YG

In concrete construction, choosing the right delivery solution is critical. YG can accurately recommend the right concrete delivery solution for you. ​Before proposing a concrete pump solution, we will first clarify several key information.

1. First, determine your concrete delivery height, which directly affects the pressure performance of the equipment.
2. Secondly, clarify the horizontal delivery distance to ensure the continuity and efficiency of concrete delivery. ​The length of the steel pipe and hose required will also be determined based on these distances.
3. At the same time, we will understand the particle size of the transported gravel, which is related to the mini concrete pump for sale’s pipe wear and delivery smoothness.
4. In addition, your requirements for delivery volume are also very important, which determines the model and specifications of the concrete pump to ensure that the construction progress requirements are met. ​

After this information is confirmed, YG will recommend the right concrete pump model for you with professional experience and equipment resources, so that the delivery link is efficient and stable, and help the construction go smoothly.

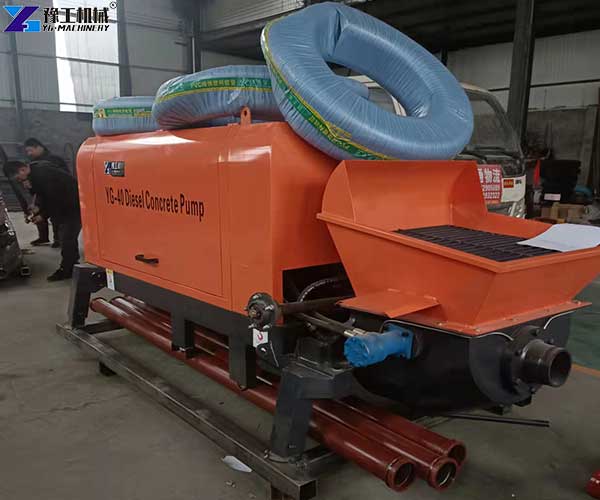

Concrete Pumping Machine Price-YG Machinery

YG has been focusing on concrete pump production for 15 years. The equipment has passed CE and ISO certification and has been exported to more than 30 countries, including the United States and Canada. Our professional technical team responds to maintenance needs 24 hours a day. From mini concrete pump for sale to large trailer pumps, there are more than 20 models. Each equipment undergoes a 72-hour continuous operation test before leaving the factory to ensure zero-fault delivery. The power of the mini concrete pump machine can be electric or diesel. In addition, we also produce portable concrete pumps, concrete mixers and pumps, wall plasterers, mortar sprayers, and other related equipment. Click to tell us your needs and develop a solution for delivering concrete for you!
