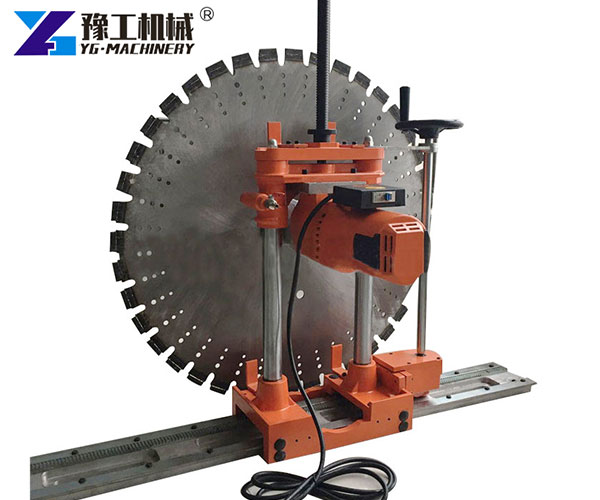

High-Performance Wall Saw Machine for Concrete Cutting

A wall saw machine is a professional concrete cutting tool used in construction and demolition. It cuts walls, floors, and other hard materials with high accuracy. It is often used on large projects because it is faster and cleaner than small handheld tools.

Typical applications include:

Creating openings for doors, windows, and vents
Cutting reinforced concrete walls
Demolition and structural changes in buildings

Professionals prefer it over handheld tools because it has:

Strong power
Better stability
Smoother cutting results
Safer operation for long working hours

Wall Saw Cutting Machine Parameter

Hydraulic Wall Saw Machine
Model	YG-600TM	YG-700TM	YG-600RV
Maximum power	25Kw	30Kw	25Kw
Motor cooling method	Air cooling	Water cooling	Air cooling
Rated voltage	380V, 50Hz	380V-420V, 50Hz-60Hz	380V/400V, 3-phase, 50Hz
Pressure stages	3	3	3
Max. Operating pressure	200bar/20Mpa	210bar/21Mpa	200bar/20Mpa
Oil flow rate	30-80L/min	40-100L/min	30-80L/min
Dimension	6006501050mm	5005201100mm	6506001000mm
Weight	220kg	140kg	210kg

Electric Wall Saw Machine
Model	YG-800	YG-1000	YG-1200
Type	Manual type / Semi-automatic type / Full automatic type (every model has three types)
Cutting depth	320mm	420mm	520mm
Saw blade diameter	800mm	1000mm	1200mm
Power/Voltage	7280w/220v	7580w/220v	7880w/220v
Rotary speed	400r/min	380r/min	350r/min
Machine weight	35kg	38kg	45kg
Machine size	555578cm	555588cm	555598cm

How A Concrete Wall Saw Works

A wall saw uses a track-mounted system to move smoothly along the wall during cutting. The track keeps the machine stable and helps it make straight, clean cuts.

The cutting force is generated by a diamond blade that rotates at high speed. The diamond segments allow it to cut:

Reinforced concrete
Brick and block walls
Stone and other hard materials

Most machines can also adjust the cutting angle and depth. This gives workers more control and makes it easy to complete complex cutting tasks.

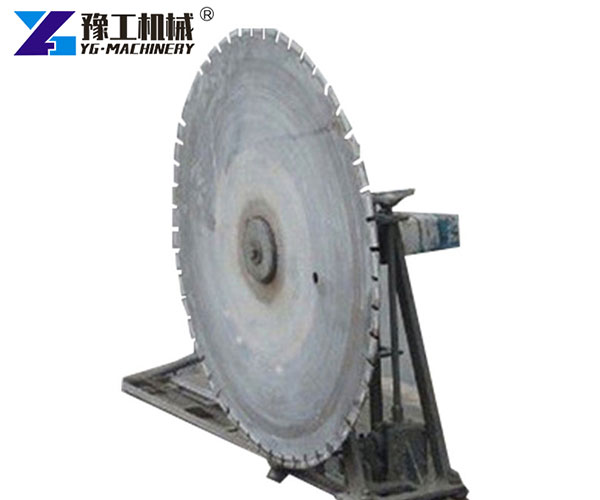

Diamond wall saw for reinforced concrete

Request A Free Quote Today ✍️

Key Features Of A High-Quality Wall Saw Cutting Machine

A good Concrete wall saw cutting machine should offer stable and efficient performance. Key features include:

High accuracy: The track system guides the blade to cut straight lines.
Powerful motor: Provides strong cutting power, keeping the blade cutting smoothly even on thick concrete.
Durable structure: Long service life, even under heavy use.
Water cooling system: Reduces dust and protects the blade.
Safety protection: Prevents overload and improves operator safety.

These features help you complete projects faster and with better results.

Advantages Of Using A Diamond Wall Saw

A diamond wall saw gives many benefits to professional contractors. It helps improve speed, safety, and cost control.

Main advantages:

Faster and cleaner cuts
Less labor and shorter project time
Better results for large structural changes
Ideal for door openings, window openings, and expansion projects
Lower cost due to higher productivity

These advantages make the wall saw a key part of modern concrete cutting equipment.

Request A Free Quote Today ✍️

YG Wall Saw Machine Product Highlights

The YG wall saw machine is designed for strong power, deep cutting, and stable operation. It offers features like:

High-power motor for tough concrete
Large blade diameter and deep cutting depth
Accurate track system for steady movement
Support for many types of diamond blades
Strict performance testing for reliability

Compared with older cutting tools, the YG machine delivers smoother cuts and higher efficiency.

Applications Of the Wall Saw Machine for Sale

Wall saws are used in many projects where strong and precise cutting is needed. They help workers complete tasks such as:

Concrete wall cutting in a house or office renovation
Structural changes in tunnels, bridges, and factories
Controlled cutting for demolition projects

These machines can cut thick walls quickly while keeping the surface clean. This helps reduce extra work and makes the site safer.

Request A Free Quote Today ✍️

How To Choose The Right Wall Saw Machine

To choose the right wall saw for sale, you should check several key points:

Power level and cutting depth
Blade size and type of material to cut
Whether you need a hydraulic, electric, or high-frequency system
Safety functions and cooling design
Maintenance needs and spare parts supply

Professional contractors often choose machines with strong power, stable tracks, and reliable after-sales service.

Why Choose YG As Your Wall Saw Supplier

YG offers a high-quality concrete wall cutting machine with strong technical support. Our products are trusted by contractors worldwide because we provide:
