The concrete wall cutting machine is primarily used in building construction and renovation projects, including reinforcement and design changes. It is a specialized tool known as a hydraulic wall saw, specifically designed for cutting tough materials like reinforced concrete, rock, ceramics, and brick walls. It is particularly useful for tasks such as bridge cutting and stone processing.

Continue reading to learn more about the features and functionality of this wall saw machine.

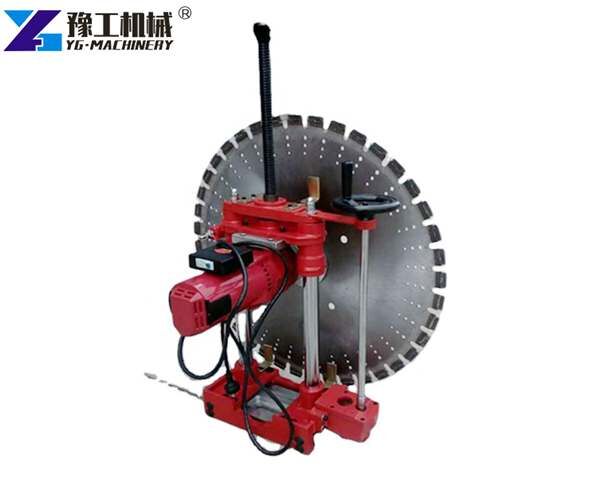

YG Concrete Wall Saw Cutting Machine

Wall saw is an engineering tool consisting of a power station and a saw head, a saw originally designed for cutting concrete walls, and used for building engineering renovations. Contact us to get the wall cutting machine price.

Concrete wall cutting

Concrete Wall Cutting Machine Technical Parameters

Model600TM700TM
Saw blade diameter range800-1400mm800-1600mm
Cutting depth620mm730mm
Center hole of blade60mm60mm
Saw blade lifeabout 20 square metersabout 20 square meters
Max. working pressure180bar/18Mpa200bar/20Mpa
Max. oil flow rate100L/min100L/min
GearingGearGear
Rotation speed450/900/1350Rpm600/850/1400Rpm
Dimension400mm*420mm*400mm400mm*420mm*400mm
Weight38kg39kg

YG Wall Saw Cutting Machine can cut large-area walls such as door holes, windows, or elevator holes. The structure is non-destructive and can be formed at one time, which can not only avoid the damage to the building structure caused by the traditional master’s beating and construction; but in addition to the time, material, and manpower consumption of the circular hole drilling method, it can also save a lot of rest time and cost.

Advantages of Concrete Wall Cutting Machine

  1. This machine uses a heavy-duty double-insulated high-power motor and reducer
  2. Low failure rate, long service life and save maintenance costs
  3. The special mechanical clutch protection device can effectively prevent damage to the machine and personnel due to misoperation.
  4. With manual or automatic cutting control device
  5. Improve the construction quality and speed up the construction speed.
  6. It can also greatly reduce the labor intensity of the operator.

Concrete wall saw working video

Hydraulic wall saw machine for sale

A hydraulic wall saw is a high-level engineering tool. The machine can be used in construction engineering renovation and reinforcement construction. As a special concrete wall cutting machine, it reduces labor intensity, operates safely and reliably, has an overload protection function, and has strong power, which improves cutting ability and labor productivity. It is the advanced equipment used for demolition, demolition, and construction projects.

Because its linear cutting can make the construction section tidier. Also because it can double the working speed to shorten the construction period, further reduce labor costs, improve bidding advantages, and expand the scale of acceptable construction projects. The equipment can greatly reduce the loss cost of construction equipment, because of the safety of the hydraulic system itself, reliability, and stability.

In addition, static cutting like wall saw cutting has gradually become a construction and design concept because it can preserve the stability and safety of the existing structure to the greatest extent. At present, it is the leading advanced cutting construction equipment widely used in reinforcement companies and demolition companies, replacing the traditional way of construction by hammering or drilling holes.

Concrete wall cutting machine Manufacturer

Henan Yugong Machinery is a top and professional machine manufacturer and supplier. Besides the concrete wall saw cutting machine, YG Machinery provides also Concrete Road Cutting Machine, Manhole Cover Cutting Machine, Pile Breaker Machine, etc. And rebar machinery, such as rebar cutting machines, rebar straightening and cutting machines, rebar bending machines, etc. If you have any needs of the machine, please contact us to get more details.
