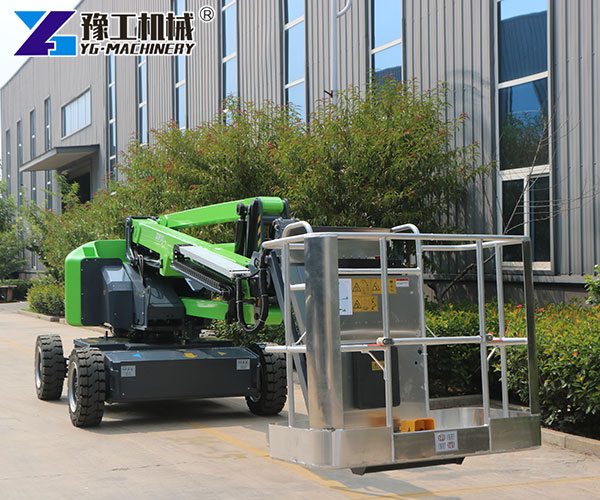

US construction site articulating boom lift
Construction site articulating boom lift

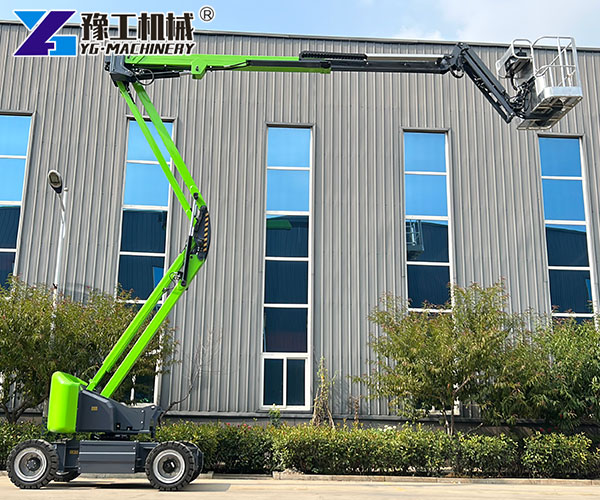

Industrial articulating boom lift
Industrial articulating boom lift

US Client Ordered An Articulating Boom Lift For Their Project

A US construction company purchased an articulating boom lift for sale from YG Machinery. They needed reliable lifting equipment for their ongoing construction project. The machine was chosen to improve work efficiency, enhance safety, and meet specific job site requirements.

Project Background

The client’s construction site had several limitations:

  • Height and load restrictions: Maximum work height and platform capacity had to meet strict safety standards
  • Frequent usage: The lift needed to operate daily for several hours without failure
  • Site environment: Narrow passages and uneven surfaces required flexible operation
  • Logistics and import: The equipment had to pass US customs smoothly and be transported safely

These factors created a real-world environment for selecting the right boom lift and set the stage for equipment matching.

Customer Selection Logic

Before choosing YG Machinery, the client compared multiple options. Their selection process focused on:

  • Comparing different brands and models
  • Prioritizing key performance metrics: work height, load capacity, and maneuverability
  • Evaluating reliability, after-sales service, and transportation convenience

During this process, they considered industrial articulating boom lift options and also looked at articulated aerial lift for sale from other suppliers. YG Machinery’s solution stood out due to stability, high performance, and export experience.

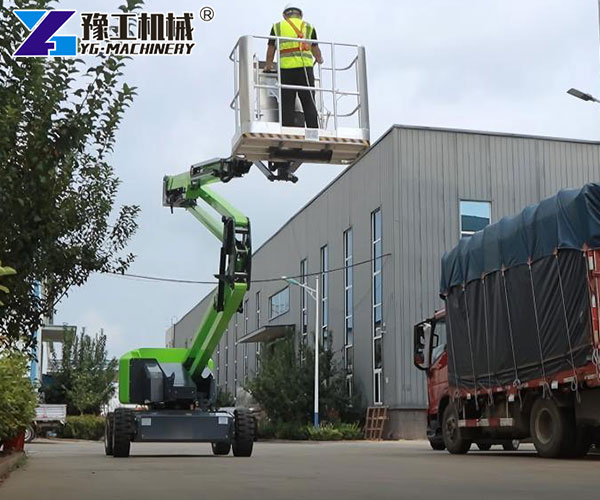

Articulated aerial lift operation
Articulated aerial lift operation

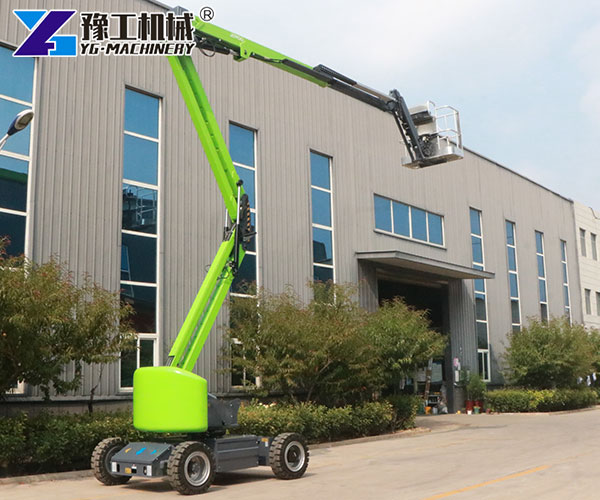

High-performance articulating boom lift
High-performance articulating boom lift

Equipment Matching

YG Machinery proposed an articulating boom lift that fit the client’s needs while addressing site limitations:

  • High platform reach matched the required work height
  • The load capacity satisfies heavy material handling demands
  • Flexible articulation allowed operation in narrow spaces

Real-world constraints were handled by:

  • Adjusting transport dimensions for US roads
  • Providing on-site operator guidance for uneven terrain
  • Selecting models that comply with local safety standards

Equipment parameters:

maximum working height12m
Maximum platform height10m
maximum horizontal extension5.8m
Maximum span height4.78m
Maximum carrying capacity200kg
Gradeability25%
Minimum turning radius2.16m
Running speed (km/h)decline3km/h
rising0.8km/h
Closing length4.35m
Car closing width1.5m
closing height1.99m
Platform size (length × width × height)1.1m×0.65×1.13m
turntable rotation355°
Platform rotation120°
Ground clearance0.15m
Drive wheel size0.59*0.19/0.66*0.17m
gross weight4700kg
control voltage24V
Battery48/320 V/Ah
charger48/40 V/A
Hydraulic tank volume40 L
Wheelbase1.65m

This approach ensured the lift met practical needs while remaining safe and efficient.

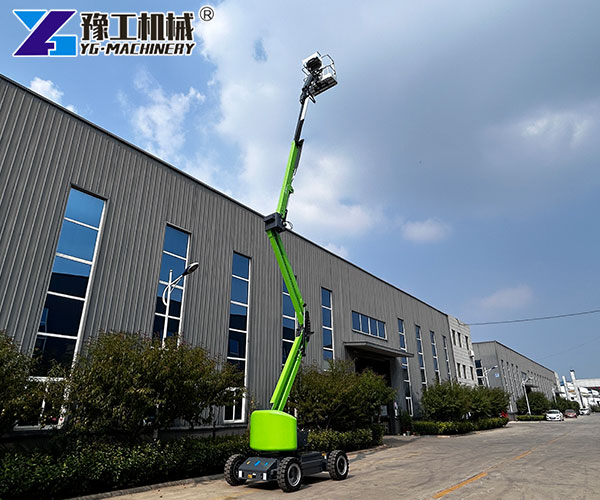

YG Machinery articulating boom lift delivery
YG Machinery articulating boom lift delivery

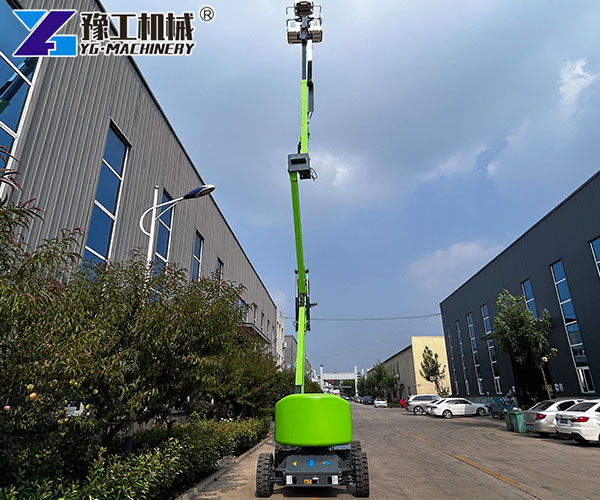

On-site articulating boom lift performance feedback
On-site articulating boom lift

Delivery And On-Site Performance Feedback

The lift was delivered to the US construction site through coordinated logistics:

  • Shipment handled via sea freight with proper packaging
  • Arrived on time and cleared US customs without delay
  • Operators are trained quickly to use the machine safely

On-site feedback:

  • Efficiency: Reduced time spent on high-elevation tasks
  • Safety: Stable platform and smooth controls
  • Flexibility: Easily maneuvered in tight spaces

Some limitations were noted: the lift requires trained operators for maximum safety, and the size may restrict use in extremely narrow indoor spaces.

Reference Value For Other Buyers

This case provides a useful reference for other potential buyers:

  • Selection insights: Evaluate work height, load capacity, and site restrictions
  • Export considerations: Logistics, customs clearance, and operator training are key
  • Practical advice: Consider terrain and site layout before ordering

Understanding these factors helps other clients make informed decisions when purchasing an articulating boom lift for sale for US projects or similar construction environments.
