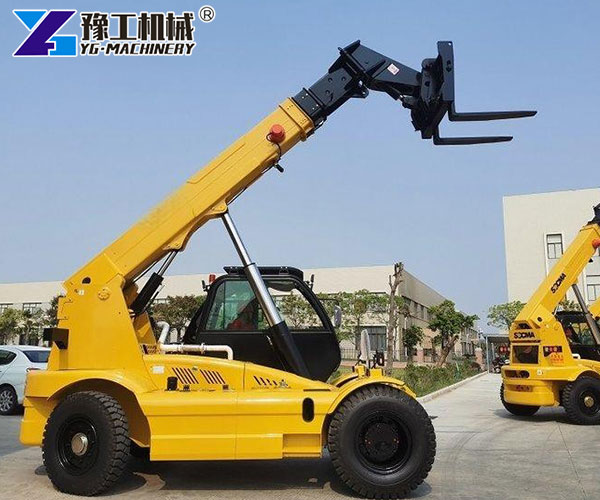

What Is A Telescoping Forklift And How It Works
A Telescoping Forklift is a material handling machine designed to lift, place, and move loads at greater heights and longer forward distances than a standard forklift. It is widely used on construction sites, farms, and outdoor industrial yards where reach and flexibility are required.
The core structure combines two main parts:
- A telescopic boom that can extend forward and upward
- A fork or attachment system mounted at the boom end
This design allows the machine to place materials over obstacles, onto upper floors, or into hard-to-reach areas. Unlike a normal forklift that lifts vertically, the telescopic arm moves both outward and upward, which greatly expands its working range.
Compared with a standard forklift or a wheel loader, the differences are clear:
- Higher lifting height and longer forward reach
- Better performance on rough and uneven ground
- More attachment options for different jobs

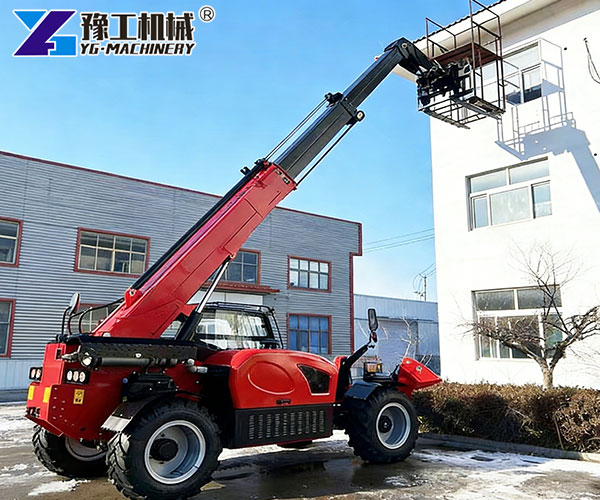

A typical telescopic handler machine can reach heights of 6 to over 18 meters, depending on the model. Forward reach also varies, making it suitable for loading across trenches, walls, or stacked materials.
Key Applications Of A Telescoping Forklift
A Telescoping Forklift is built for multi-industry use. Its design solves common lifting problems where height, distance, or ground conditions limit standard equipment.

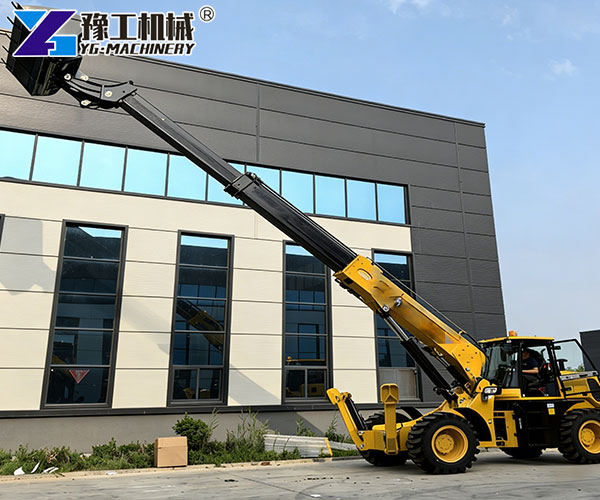

Construction Sites – Construction Telescoping Forklift
On construction sites, a construction telescoping forklift is often used to move heavy building materials quickly and safely.
Common tasks include:

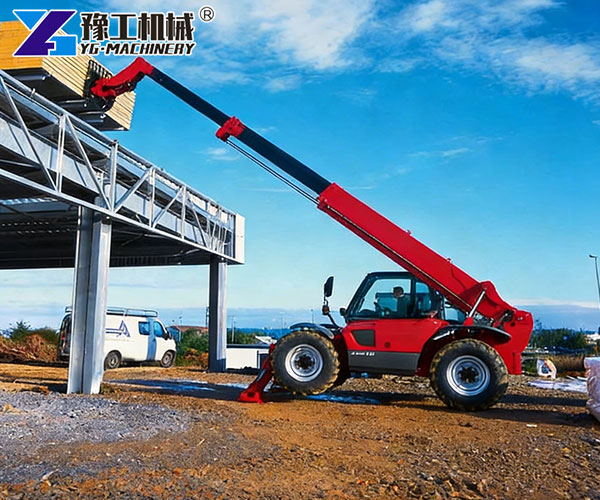

- Lifting bricks, blocks, and cement pallets to upper floors

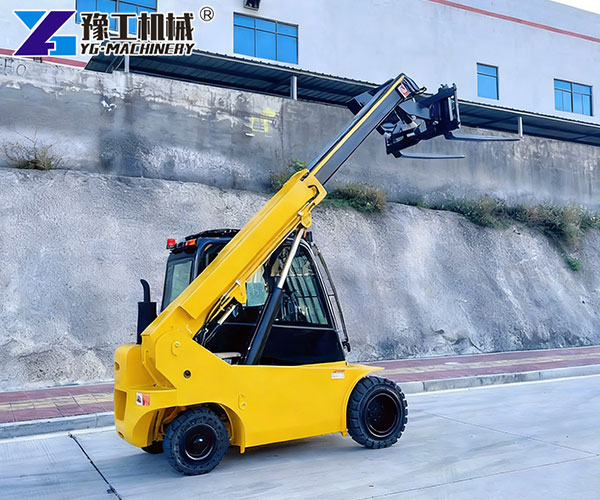

- Moving steel beams, pipes, and formwork
- Supplying materials across scaffolding or barriers
Compared with cranes, it is faster to move between points. Compared with forklifts, it reaches higher and farther. This improves workflow and reduces manual handling on busy job sites.
Agriculture And Farming – Agricultural Telehandler
In farming environments, an agricultural telehandler plays a key role in daily operations, especially where the terrain is uneven.
Typical agricultural uses include:

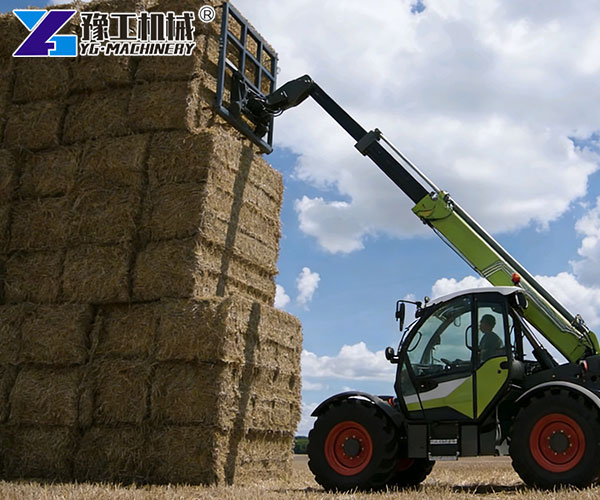

- Handling hay bales and feed pallets
- Loading fertilizer, seed bags, and animal feed
- Cleaning barns or moving bulk materials with buckets
Thanks to large tires and four-wheel drive, the machine works well on mud, grass, and soft soil. One telehandler forklift can often replace several smaller machines on a farm.

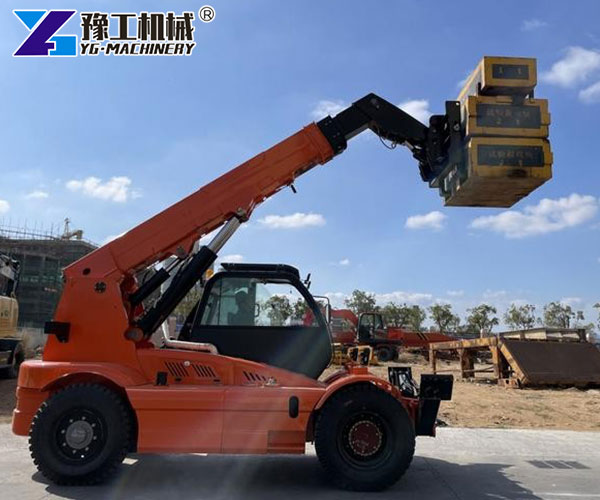

Industrial And Logistics Yards – Telehandler Forklift
In outdoor logistics yards and industrial zones, a telehandler forklift offers flexibility where space and height vary.
It is commonly used for:
- Loading and unloading containers
- Stacking materials at non-standard heights
- Transporting heavy loads across long outdoor distances
For yards without flat concrete floors, this machine performs better than warehouse forklifts and reduces downtime caused by ground conditions.
Telescoping Forklift Vs Standard Forklift
When choosing equipment, buyers often compare a Telescoping Forklift with a standard forklift. Each has strengths, but their working range is very different.
Key differences include:
- Lifting height and reach: Telescopic machines lift higher and reach forward, while standard forklifts lift straight up
- Terrain adaptability: Rough terrain forklifts handle outdoor ground better
- Job replacement ability: A telescopic handler can replace cranes or loaders in some tasks
In terms of cost and efficiency:
- A standard forklift is cheaper for indoor warehouse use
- A telescopic handler costs more but replaces multiple machines
- Fewer machines on site means lower labor and transport costs
For mixed outdoor projects, the telescopic option often delivers higher long-term value.
Telescopic Telehandler Parameter
| Model | YG-TS1035 | YG-TS1440 | YG-TS1850 |
| Rated load | 3500kg | 4000kg | 5000kg |
| Maximum lift height | 10000mm | 13500mm | 17550mm |
| Maximum reach | 5000mm | 8500mm | 13080mm |
| Maximum traction force | ≥70kn | ≥70kn | ≥70kn |
| Minimum ground clearance | 420mm | 420mm | 420mm |
| Overall dimensions | 5700×2230×2400mm | 7000×2350×2550mm | 7500×2430×2550mm |
| Wheelbase | 3670mm | 3670mm | 3670mm |
| Engine Type | CUMMINS/Yuchai | Yuchai Brand | YunneiBrand |
Main Specifications That Buyers Should Focus On
Understanding specifications helps buyers choose the right Telescoping Forklift for real working needs.
Key points to evaluate include:
- Rated load capacity: Maximum safe lifting weight at different boom positions
- Maximum lifting height and forward reach: Determines usable working range
- Engine options: Diesel for heavy outdoor use, electric for low-emission areas
- Drive system: 4WD improves traction; multiple steering modes increase control
- Safety systems: Load moment control prevents tipping during boom extension
These specifications directly affect safety, productivity, and machine lifespan.
Attachments That Expand The Function Of A Telescoping Forklift
Attachments turn one machine into many tools. This is a major advantage of a Telescoping Forklift.
Common attachments include:
- Pallet forks for standard material handling

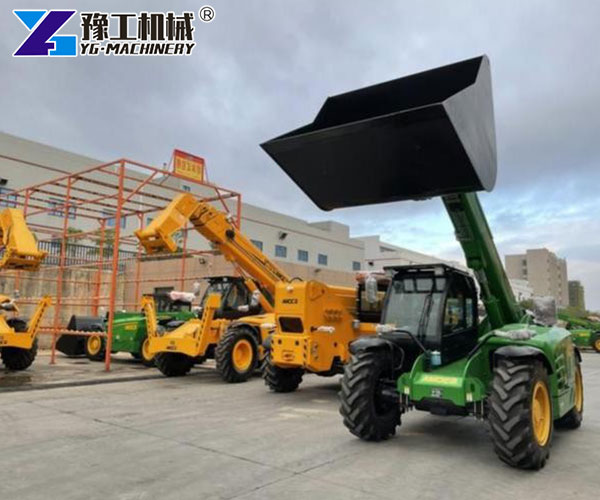

- Buckets for loose materials like sand or grain
- Lifting hooks or winches for suspended loads
- Work platforms for safe height access
With quick-change systems, operators can switch tasks in minutes. This flexibility improves job efficiency and reduces equipment investment.
How To Choose The Right Telescoping Forklift For Your Project
Choosing the correct machine depends on real job conditions, not just maximum numbers.
Important selection factors include:
- Required lifting height and average load weight
- Primary work environment: construction, farming, or general handling
- Available space and transport needs
Small telescopic handlers suit farms and light construction. Heavy-duty models fit large construction projects and industrial yards.
Common buyer mistakes include:
- Buying a machine that is too large for daily tasks
- Ignoring attachment needs during initial purchase
- Choosing height over load stability
A balanced selection ensures safety, performance, and cost control.
Telescoping Forklift For Sale – Get A Quote
YG offers Telescoping Forklift solutions designed for construction, agriculture, and industrial users. These machines suit buyers who need high reach, strong lifting power, and reliable outdoor performance.
YG supports:
- Customized specifications and attachments
- Project-based equipment matching
- Export-ready machines for global markets
Contact the YG team today to get price details and professional support for your lifting project.
