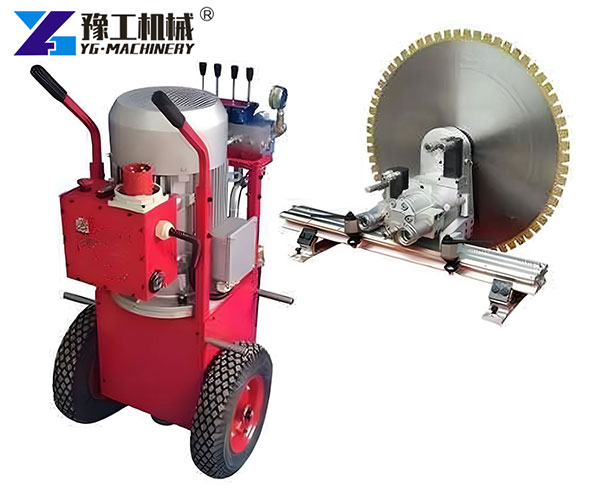

Diamond wall saw for construction projects
Diamond wall saw for construction projects

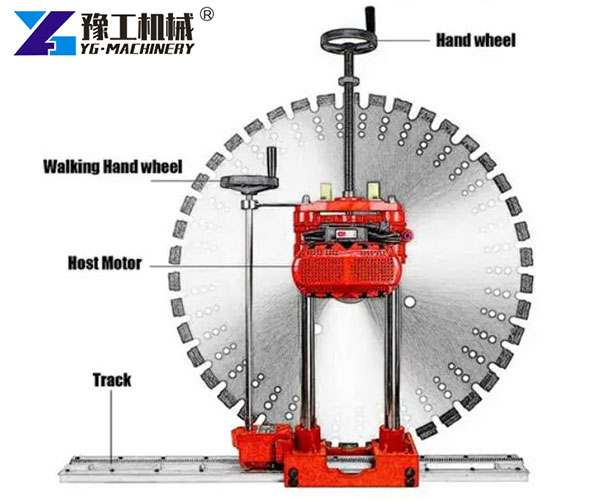

Hydraulic wall saw machine cutting reinforced concrete
Hydraulic wall saw machine cutting reinforced concrete

A Concrete Wall Saw Cutting Machine is an essential tool in today’s construction projects. It is widely used in building renovation, wall openings, and reinforced concrete demolition. With its high precision and efficiency, it allows contractors to complete projects faster and with better cutting quality. For tasks like making door and window openings or removing structural sections, this machine is the professional choice.

Concrete Wall Saw Cutting Machine Parameter

Hydraulic Oil PumpModelYG-600YG-700
Max.power25KW30KW
Motor cooling methodAir coolingwater cooling
Rated voltatge380V 50HZ380V-420V 50HZ-60HZ
Pressure stages33
Max.operating pressure200bar/20Mpa210bar/21Mpa
Oil flow rate30-80L/min30-100L/min
Dimensions600mm*650mm*1050mm500mm*520mm*1100mm
Weight220kg118kg
Wall SawSaw blade diameter range800-1400mm800-1600mm
Cutting depth620mm730mm
Max.working pressure180bar/18Mpa200bar/20Mpa
Max.oil flow rate100l/min100l/min
GearingGearGear
Rotation speed450/950/1300Rpm600/850/1400Rpm
Dimension400mm*420mm*400mm400mm*420mm*400mm
Weight38kg39kg

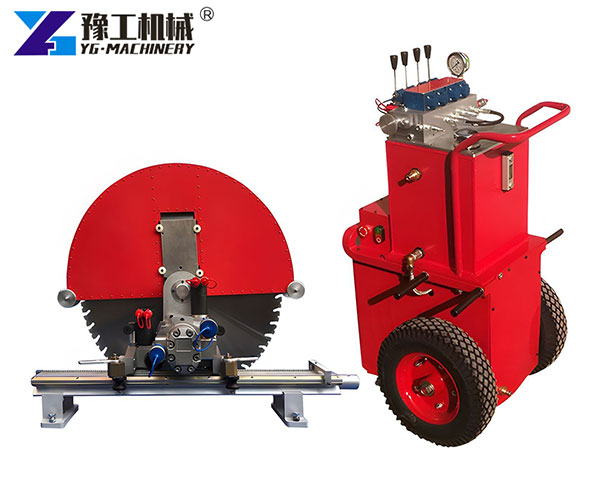

Professional wall saw cutter with strong blade
Professional wall saw cutter with strong blade

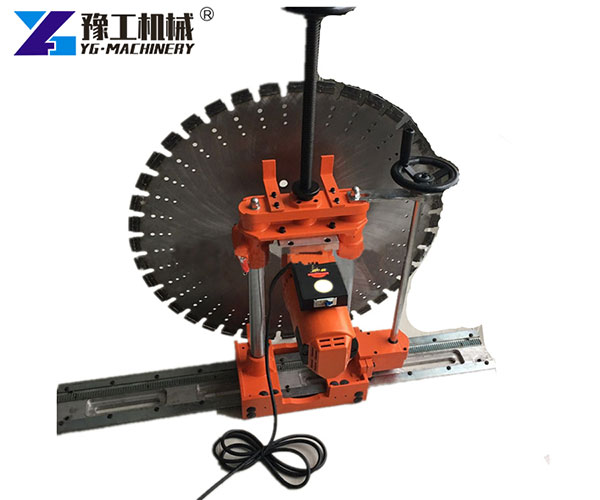

Concrete wall saw cutting machine for demolition
Concrete wall saw cutting machine for demolition

How The Diamond Wall Saw Works

The diamond wall saw operates with a diamond blade powered by an electric or hydraulic motor. The diamond blade ensures smooth and clean cuts, even through reinforced concrete and thick walls. This technology is used for:

  • Creating wall openings for doors and windows
  • Modifying concrete structures during renovation
  • Demolishing parts of buildings safely and efficiently

Key Features Of Hydraulic Wall Saw Machine

The hydraulic wall saw machine is designed to handle tough construction jobs with ease. Some of its main features include:

  • High cutting power: Can cut reinforced concrete and thick structures
  • Accuracy: Straight lines and smooth edges with no damage to surrounding structures
  • Flexibility: Adjustable cutting angles and suitable for different thickness levels
  • Durability: Diamond blades with long service life and a strong machine body

These features make it ideal for both small construction sites and large infrastructure projects.

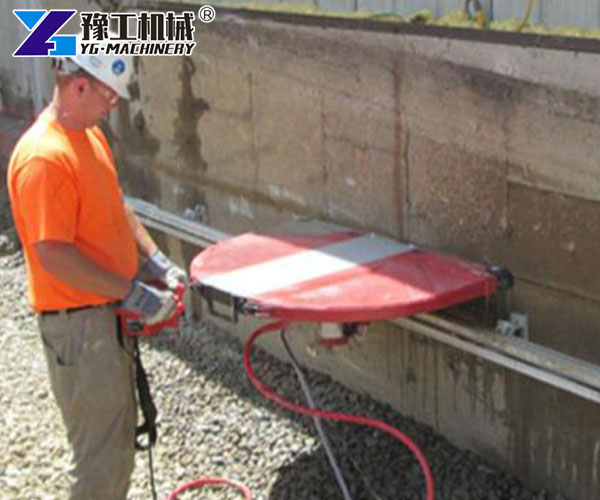

Wall saw for concrete cutting in buildings
Wall saw for concrete cutting in buildings

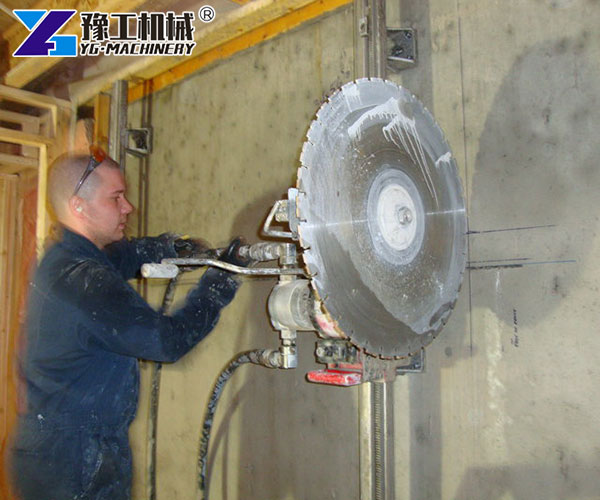

Diamond blade wall saw for bridge renovation
Diamond blade wall saw for bridge renovation

Wall Saw For Concrete Cutting Applications

A concrete wall cutting machine is suitable for many construction and civil engineering works. Common applications include:

  • Building renovation: Cutting doors, windows, or expanding spaces
  • Bridges and tunnels: Precise cutting for maintenance and upgrades
  • High-rise buildings: Wall removal and structural modification
  • Municipal works: Infrastructure reinforcement and redesign projects

This versatility helps contractors work in different environments without changing equipment.

Benefits Of Using A Professional Wall Saw Cutter

Choosing a professional wall saw cutter provides significant advantages on-site:

  • Faster cutting reduces project timelines
  • Lower labor requirements improve safety and save money
  • High-quality cuts minimize the need for extra finishing work
  • Adaptability makes it reliable for multiple working conditions

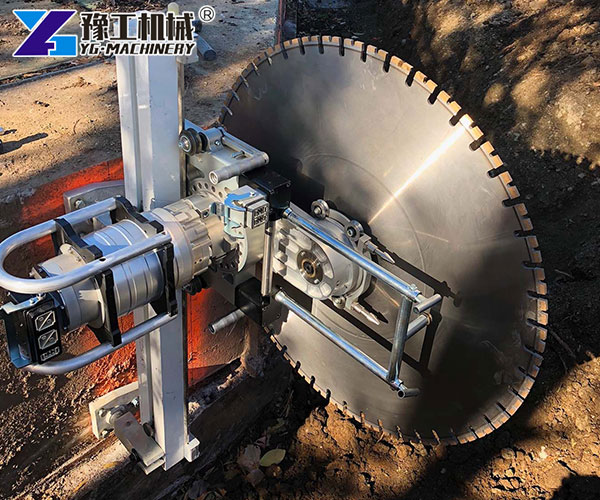

High precision concrete wall saw cutting machine
High precision concrete wall saw cutting machine

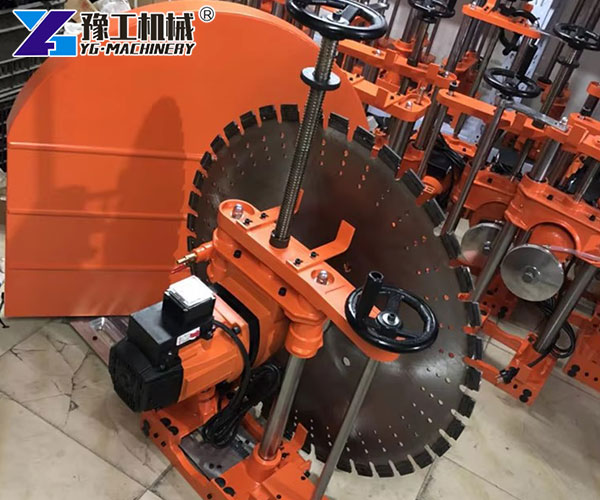

Reliable concrete wall saw cutting machine supplier
Concrete wall saw cutting machine supplier

Why Choose YG Concrete Wall Saw Cutting Machine

YG Machinery is a trusted supplier of Concrete Wall Saw Cutting Machines worldwide. Reasons to choose YG include:

  • Wide export experience and compliance with EU and US standards
  • Multiple power options, including electric and hydraulic models
  • Competitive factory prices with strong after-sales support
  • Proven performance in global customer projects

Contractors benefit from reliable machines and professional services that keep projects on track.

Get Your Concrete Wall Saw Cutting Machine Today

The Concrete Wall Saw Cutting Machine is the right solution for precise and efficient cutting in construction projects. It improves productivity, ensures safety, and meets the needs of modern contractors. Contact YG today to get your customized solution and quotation.
