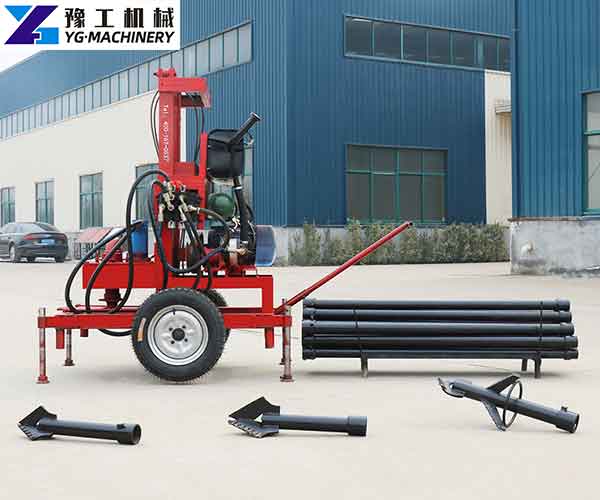

Water Borehole Drilling Machine for Sale in Philippines

Some time ago, Engr Joseph from the Philippines was interested in our water borehole drilling machine for sale. Want a quotation and a list of freight to the port, our sales staff asked the customer about the drilling depth and hole diameter. I would like to recommend XYX-3 trailer mounted water well drilling rigs. XYX-3 water drilling machine for sale in YG Machinery is the best-selling water well drilling rig. Water borehole drilling machine for sale mainly used for water wells, comprehensive geological survey, concrete structure holes, road and high-rise building foundation exploration, river embankments, roadbed grouting, direct injection Pulp, civil wells, ground temperature central air-conditioning, etc.

Water Borehole Drilling Machine for Sale
Water Borehole Drilling Machine for Sale

Request A Quote

Technical Parameter of XYX-3 Trailer Mounted Water Well Drilling Rigs:

Technical Parameter Model XYX-3
Drilling Depth (m) 600
Open Hole Diameter (mm) 325
Final Hole Diameter(mm) 75
Drill Pipe Diameter(mm) 60
Drill Pipe Inclination (°) 90-75
Power (kW) 13.2
Weight (kg) 3600
Dimensions(mm) 2900*2560*3300
Spindle Speed(r/min) 32-1057
Stroke(mm) 600
Winch Max Pull Force(kg) 3000
Pull Speed(m/min) 0.3-1.9
Rope Diameter(mm) 12.5
Roll Capacity(m) 65
Drill Mast Rated Load(ton) 18
Height(m) 6.5
Mud Pump Mud Pump BW-250
Work Pressure 80kg/cm²
Displacement(L/min) 250
Hose Inlet Hose Diameter(mm) 76
Outlet Hose Diameter(mm) 51

Request A Quote

Water Well Drilling Equipment for Sale
Water Well Drilling Equipment for Sale

A Series of Water Borehole Drilling Machine for Sale

YG Machinery as a professional manufacturer of portable water well drilling rigs, we have a series of full models of small water well drilling rigs. In addition to HY-240E Electric hydraulic water well drilling machine, we also have other models for you to choose from. Such as HY-180 Single-phase folding water well drilling rig. HY-180B Single-phase electric telescopic water well drilling machine. ZX-220 Gasoline hydraulic water well drilling rig. ZX-280 Diesel hydraulic water well drilling machine. HY120 water drilling machine well drilling rig. HY-240 High-power electric folding water well drilling rig. And HY-350 Three-phase folding water well drilling machine, etc.

It is suitable for a variety of working environments, with moderate price and high work efficiency. If you want to buy a water well drilling machine, please click below for more information on the price of water well drilling rigs for sale.

XYX-3 Trailer Mounted Water Well Drilling Rigs
XYX-3 Trailer Mounted Water Well Drilling Rigs

Request A Quote

HY-180 & HY-180B Parameter

Model HY-180 Single-phase Folding Water Well Drilling Rig HY-180B Single-phase Electric Telescopic Water Well Drilling Rig
Opening Hole Diameter 80-200mm 80-200mm
Drilling Depth 80m-100m 80m-100m
Drill Pipe Diameter φ42mm φ42mm
Drill Pipe Length 1.5m 1.5m
Motor Power 1.5kw-2kw 1.5kw-2kw
Pump Power 2.2kw 2.2kw
Voltage 220v 220v
Lifting Force 500kg 500kg
Size 700mm*700mm*2500mm 700mm*700mm*2500mm
Weight 120kg 120kg

Request A Quote

Zx-220 & ZX-280 Parameter

Model ZX-220 Gasoline Hydraulic Water Well Drilling Machine ZX-280 Diesel Hydraulic Water Well Drilling Machine
Opening Hole Diameter 0-280mm 0-280mm
Drilling Depth 120m 120m
Drill Pipe Diameter φ51mm φ51mm
Drill Pipe Length 1.5m 1.5m
Motor Power 4kw 4kw
Pump Power 2.2kw 2.2kw
Voltage 220v 220v
Lifting Force 800kg 800kg
Size 800mm*700mm*2500mm 800mm*700mm*2500mm
Weight 200kg 200kg

HY-120 & HY-240 & HY-350 Parameter

Model HY-120 Single-phase Tank Type Water Well Drill Rig HY-240 Single-phase High-power Electric Folding Water Well Drill Rig HY-350 Three-phase Folding Water Well Drill Rig
Opening Hole Diameter 0-120mm 0-240mm 350mm
Drilling Depth 100m 100m 100m
Drill Pipe Diameter φ42mm φ51mm φ51mm
Drill Pipe Length 1.5m 1.5m 1.5m
Motor Power 4kw 4kw 3kw
Pump Power 2.2kw 2.2kw 2.2kw
Voltage 220v 220v 380v
Lifting Force 500kg 500kg 1000kg
Size 700mm*700mm*2900mm 700mm*700mm*2500mm 800mm*800mm*2000mm
Weight 120kg 200kg 250kg

Request A Quote

Related Products

YG Machinery has many kinds of large and small drilling rigs. To deal with the different sizes of the project and the location of the construction site. For example, a crawler water well drilling machine. DTH drilling machine. core drilling machine. Rotary drilling machine. Anchor drilling rig. And many related drill tools. YG Machinery will be your ideal choice.
